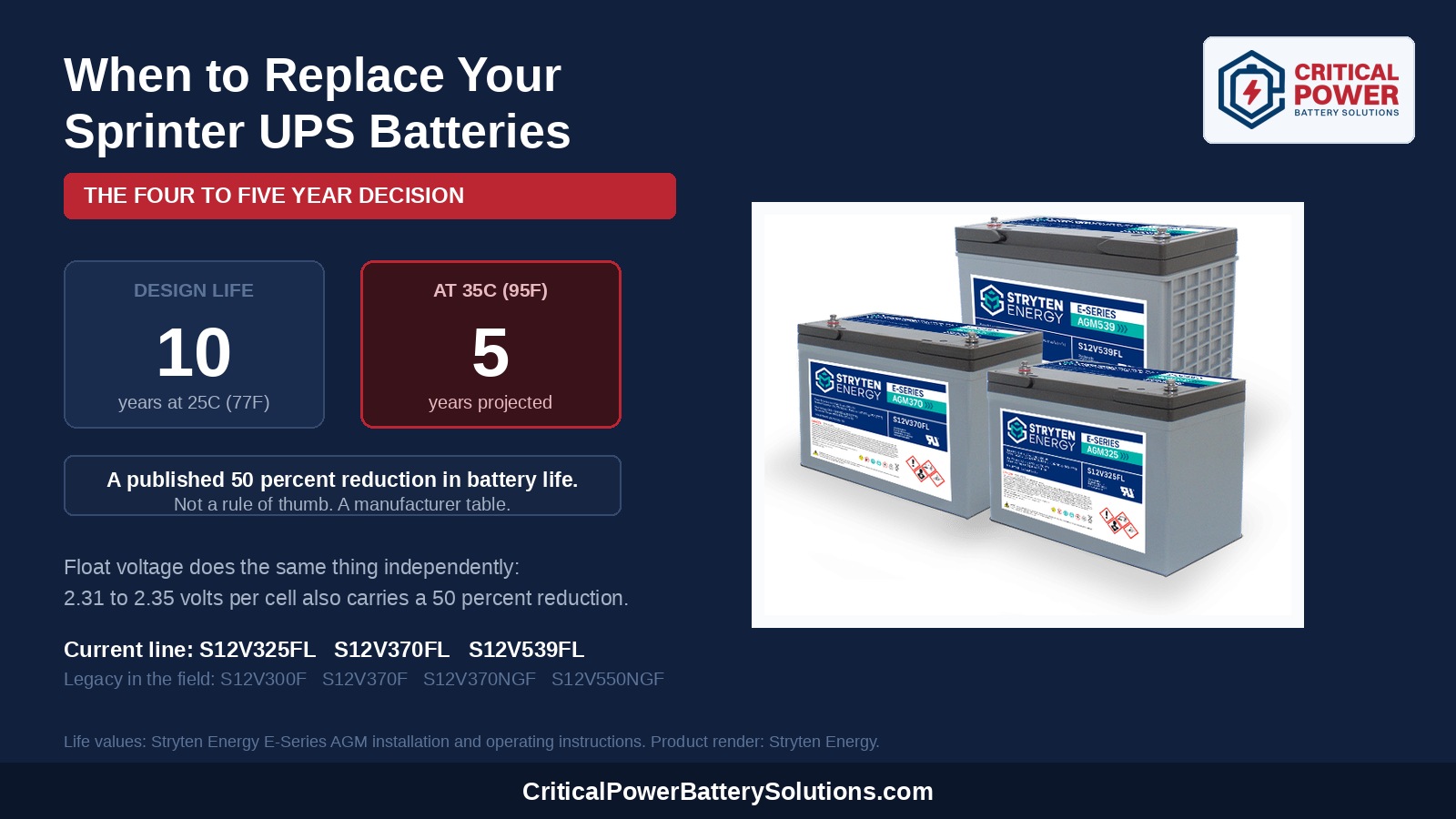

When to Replace Your Sprinter UPS Batteries: The Four to Five Year Decision

Quick answer: Replace a 12V UPS block string when it reaches the projected life for the conditions it actually lived in, not when it reaches ten years. Design life is ten years at 25C (77F), and the manufacturer publishes exactly how much of that life is lost above 25C and above the recommended float voltage. A string held at an annual average of 35C (95F) has a projected life of five years. A string floating at 2.33 volts per cell has a projected life of five years. Four to five years is not a rule of thumb. It is what the manufacturer tables predict for conditions that are extremely common.

Key points

• Ten year design life is a rating at a stated temperature, not a service life prediction for any particular room.
• At an annual average of 30C (86F) the published reduction in life is 30 percent. At 35C (95F) it is 50 percent. At 40C (104F) it is 66 percent.
• Float voltage does the same thing independently. Between 2.31 and 2.35 volts per cell the published reduction is 50 percent, and between 2.36 and 2.40 volts per cell it is 75 percent.
• Five signals decide the replacement: age against actual conditions, float voltage drift on the pilot unit, ohmic trend against the block baseline, capacity against the 80 percent line, and temperature spread across the string.
• Ohmic readings are a trend tool, not a verdict. There is no direct relationship between percent ohmic change and remaining capacity.
• Replace the string as a set. Mixing new blocks into an aged string pulls the new blocks down to the condition of the old ones.
• The legacy blocks this guide is written for are the S12V300F, S12V370F, S12V370NGF and S12V550NGF.

Somebody walks past the battery cabinet, reads the date on the label, and does the arithmetic. The blocks went in four years ago. Maybe five. The UPS has never dropped a load, the alarm panel is quiet, and nothing on the front of the cabinet suggests a problem. So the question arrives in the form it almost always arrives in: are these due, or is there another year in them?

That question has a real answer, and it is published by the manufacturer. It is not a guess and it is not a rule of thumb. This guide sets out what the documents say, how to apply them to the string in front of you, and what evidence tells you the decision has already been made.

It is written for facility and critical power managers, UPS service technicians, telecom and utility power engineers, and the procurement staff who have to defend the order. Most of the people asking are holding a GNB Sprinter or Sprinter NEXT block with an S12V part number printed on the label.

Critical Power Battery Solutions (CPBS) is the battery division of Advanced Technical Services Inc., founded in 1981 and ISO 9001 certified, and is an authorized Stryten Energy reseller. Tom Kierna, who has more than 40 years in industrial batteries including 15 across GNB and Stryten, sizes every order personally.

Who this replacement timing guide is for

This guide is for anyone holding a 12V VRLA block string that is now four or five years old and has to decide whether it stays or goes. The UPS is installed, the string is in service, and nobody has reported a fault. The decision has to be made on evidence rather than on symptoms.

• Facility and critical power managers who have to justify a replacement string in a budget cycle.
• UPS service technicians reading maintenance records and ohmic trends on an installed string.
• Telecom and utility power engineers running strings in rooms that are warmer than the rating assumes.
• Procurement staff who need the timing of the order to be defensible on paper.
• Anyone who has typed a legacy S12V part number into a search box and wants to know whether it is due.

The block in your cabinet and the block you will order carry two different labels

The Sprinter NEXT line is now sold as the Stryten Energy E-Series AGM line: same battery, same part number on the block, new label. AGM325 is S12V325FL. AGM370 is S12V370FL. AGM539 is S12V539FL. This is a label progression only, not an acquisition, a merger, or a redesign of the product.

This guide leads with Sprinter and the S12V part number, because that is what is printed on the block sitting in the cabinet. The E-Series AGM name is given once so that a current listing can be matched without wondering whether it is a different product. If the label is in front of you and the characters need decoding, that breakdown lives in the guide to reading a Sprinter NEXT part number.

Ten year design life is a rating at 25C, not a promise about your room

Design life is a rating at 25C (77F). It is not a guarantee of service life in any installation. That single distinction explains almost every conversation that starts with somebody saying the batteries were supposed to last ten years.

The rating describes what the block is built to achieve when it is held at 25C, floated inside the recommended voltage window, and maintained. Change any of those three and the manufacturer publishes what happens next. Two published tables carry the whole answer, and they work independently of each other. Temperature is the first.

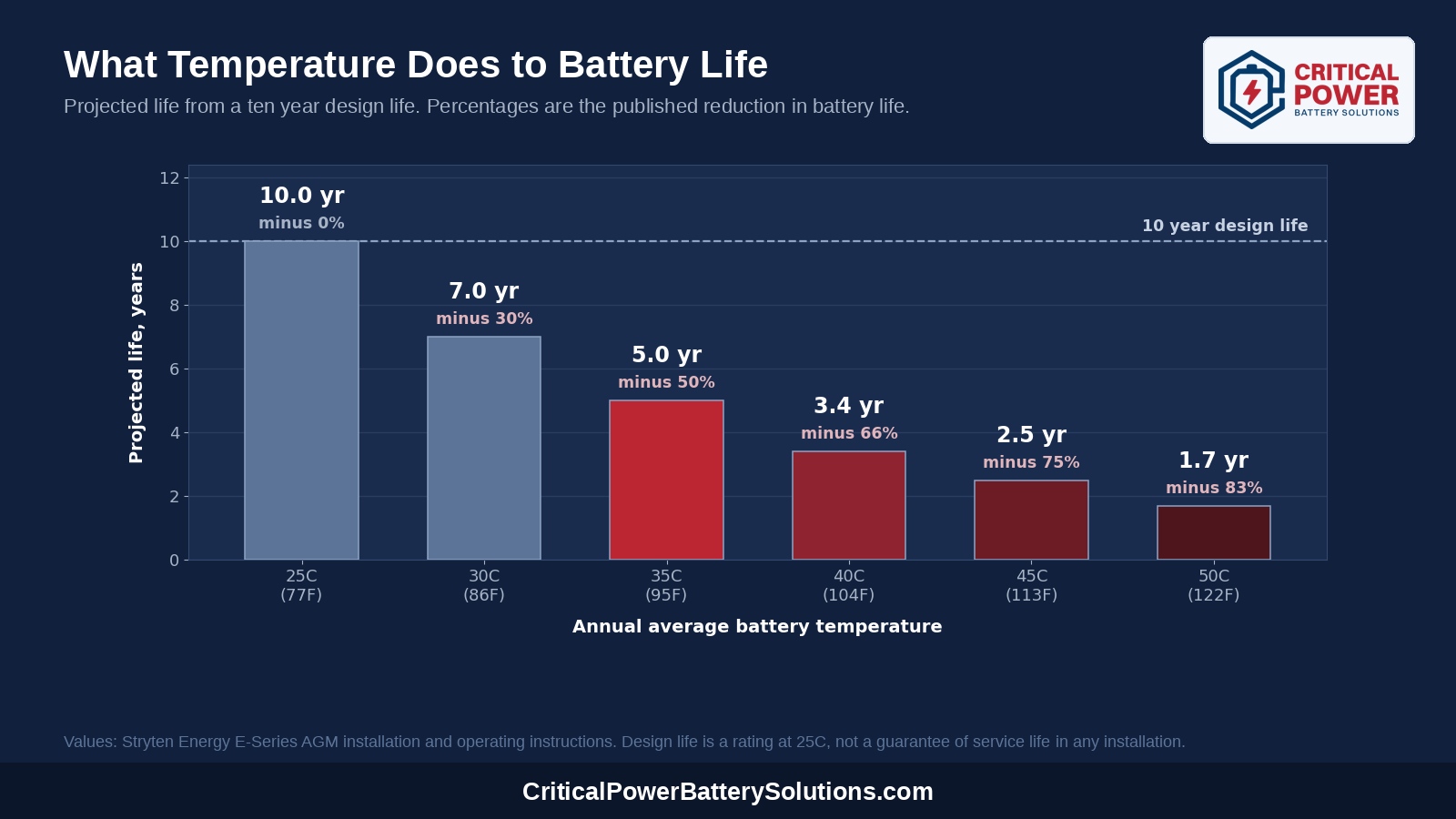

What temperature does to battery life

Above 25C, life falls fast, and the manufacturer states by how much. An annual average battery temperature of 35C (95F) carries a published 50 percent reduction in battery life, which turns a ten year design life into a projected life of five years.

The arithmetic is worth doing out loud, because it is the whole argument. A ten year design life block held at an annual average of 35C has a projected life of five years, calculated as ten years minus ten years multiplied by 0.50. Nothing has gone wrong. Nothing was defective. The block delivered exactly what the manufacturer said it would deliver at that temperature.

Note the words annual average battery temperature. Not the building set point, not the reading on the wall thermostat, and not the temperature on the day of the visit. A room that sits at 22C for eight months and 32C through a summer is not a 25C room. Neither is a room whose average is comfortable but whose battery cabinet sits against a warm wall or downstream of the exhaust from something else.

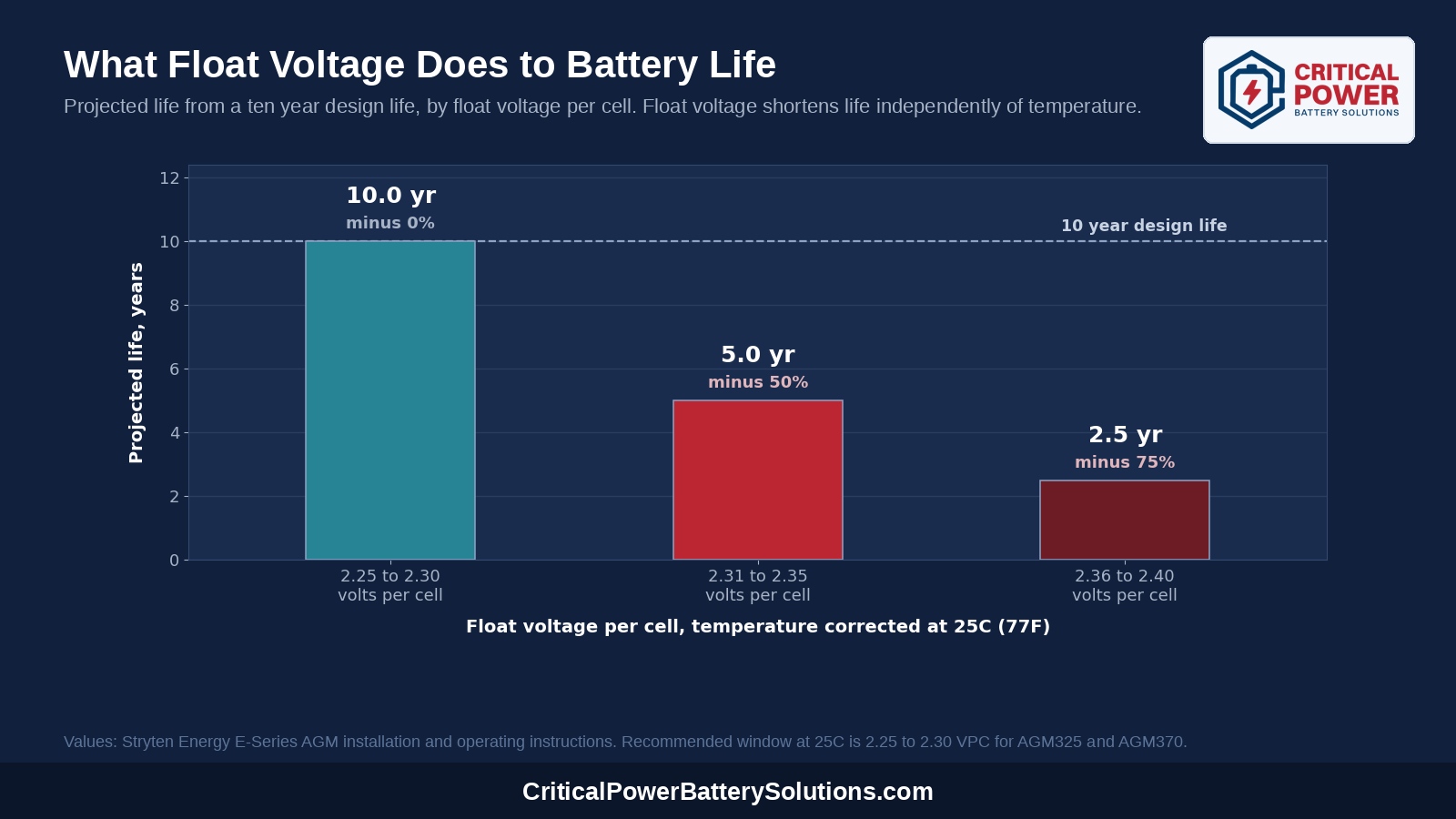

What float voltage does to battery life

Float voltage shortens life on its own, independently of temperature, and the published penalty is steep. A charger holding the string between 2.31 and 2.35 volts per cell carries a 50 percent reduction in battery life, which is the same penalty as running the room at 35C.

Values are temperature corrected volts per cell at 25C (77F). A ten year design life block held at an annual average float of 2.33 volts per cell has a projected life of five years. That is the second route to the same four to five year outcome, and a string can be travelling both routes at once.

The recommended float windows are product facts worth writing down. At 25C the AGM325 and the AGM370 run between 2.25 and 2.30 volts per cell. The AGM539 runs between 2.25 and 2.35 volts per cell. Across the line the minimum temperature corrected float is 2.21 volts per cell and the maximum is 2.40 volts per cell.

Two things push a charger above the window without anybody choosing to. A charger left at a factory default that suits a different chemistry is one. Temperature compensation set up wrongly, or not set up at all, is the other, and it is the more common of the two.

Temperature compensation, and the one number that governs it

For temperatures other than 25C (77F) the recommended charge voltage per cell is corrected at 5.5 mV per degree C per cell, which is 3 mV per degree F per cell. The correction is applied as V corrected equals V at 25C minus the quantity T actual minus 25C, multiplied by 0.0055.

The practical consequence is that a warm room needs a lower float voltage, not the same one. A charger that holds a fixed setpoint in a room running at 32C is applying a float voltage that is high for that temperature, so the room and the charger stack their penalties on top of each other. That combination is what turns a ten year block into a four year block, and it does so quietly, with no alarm and no fault indication anywhere in the system.

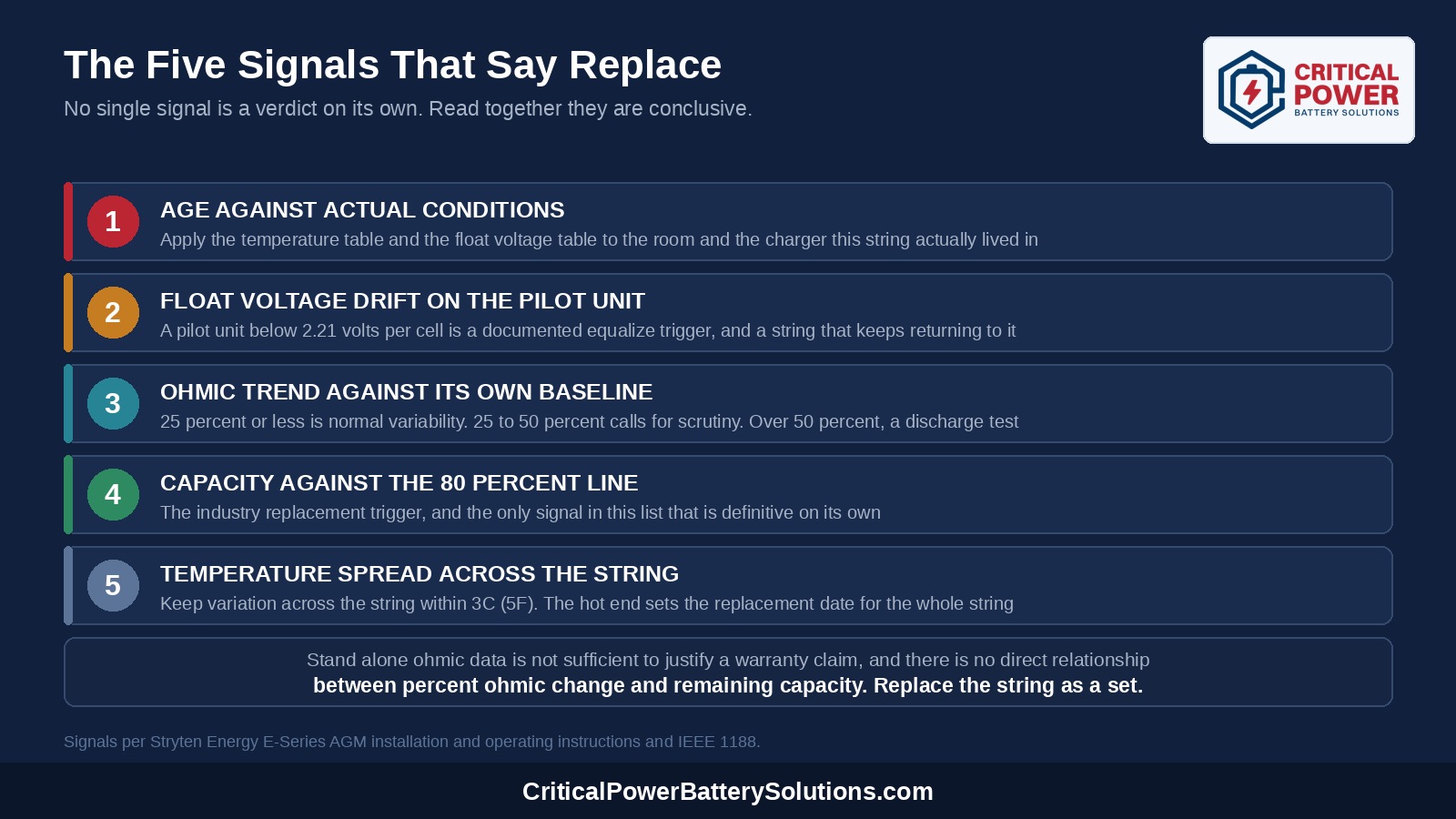

The five signals that say replace

Five signals decide the question, and most sites already hold the evidence for at least three of them. No single one is a verdict on its own. Read together they are conclusive.

1. Age against actual conditions. Take the install date, then apply the temperature table and the float voltage table to the room and the charger this string actually lived in. A four year old string in a 35C room is at the end of its projected life, not at 40 percent of it. Age on its own means very little. Age read against conditions means almost everything.
2. Float voltage drift on the pilot unit. A pilot unit sitting below 2.21 volts per cell is a documented equalize trigger. Equalizing brings it back. A string that keeps returning to that condition after equalization is telling you that the block, and not the charger, is the reason.
3. Ohmic trend against its own baseline. Compare each block to its own baseline, taken six months after installation, on the same device every time. A change of 25 percent or less is normal variability. Between 25 and 50 percent calls for scrutiny. More than 50 percent usually warrants a discharge test to an IEEE compliant method. Stand alone ohmic data is not sufficient to justify a warranty claim, and there is no direct relationship between percent ohmic change and remaining capacity.
4. Capacity against the 80 percent line. IEEE 1188 is the recommended practice for maintenance, testing and replacement of stationary VRLA batteries, and the manufacturer warranty is written against at least 80 percent of rated capacity. Below that line is the industry replacement trigger, and it is the only signal in this list that answers the question definitively.
5. Temperature spread across the string. Variations greater than 3C (5F) between units cause cell voltage differences and low voltage blocks. A string with a persistent hot end will not age evenly, and the hot end sets the replacement date for the whole string.

Procedure for the third and fourth signals is deliberately not repeated here. How to run a discharge test and what the result means is set out in the UPS battery testing guide, and how to establish an ohmic baseline and trend against it is covered in the guide to internal resistance measurement. This guide owns the decision. Those two own the method.

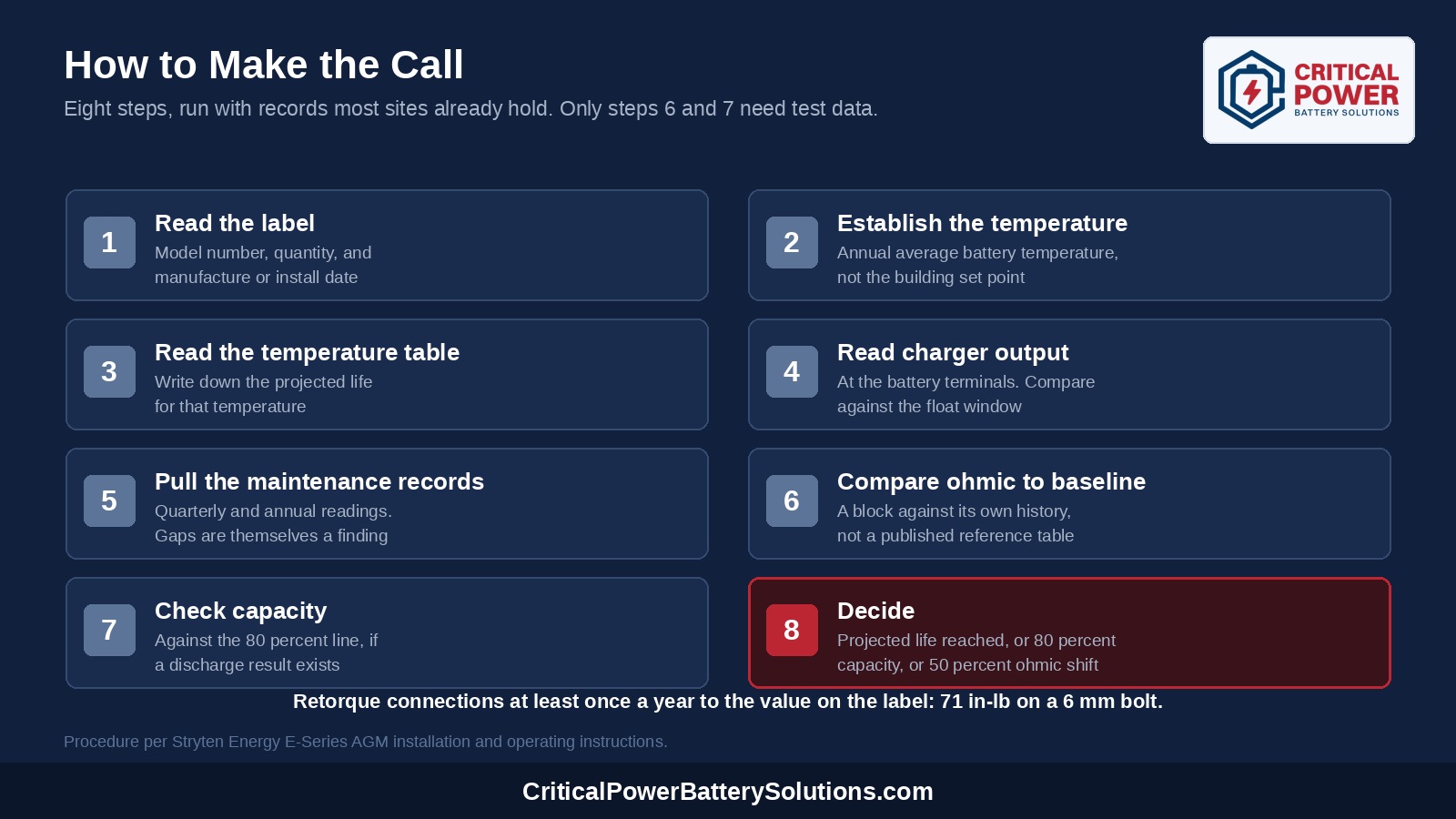

How to make the call

Eight steps, run with records most sites already hold, will answer the question without a single new instrument. Only steps six and seven need test data, and even those are usually already in a service report.

1. Read the label. Record the model number, the quantity, and the manufacture or install date. A photograph answers more questions than a description.
2. Establish the annual average battery temperature for the room the cabinet sits in, not the building set point. Where a logger exists, use it. Where one does not, an honest seasonal estimate beats the thermostat reading.
3. Read the temperature table and write down the projected life for that temperature. This is the number the rest of the exercise is measured against.
4. Read charger output at the battery terminals and compare it against the recommended float window for the model, corrected for temperature. Apply the float voltage table.

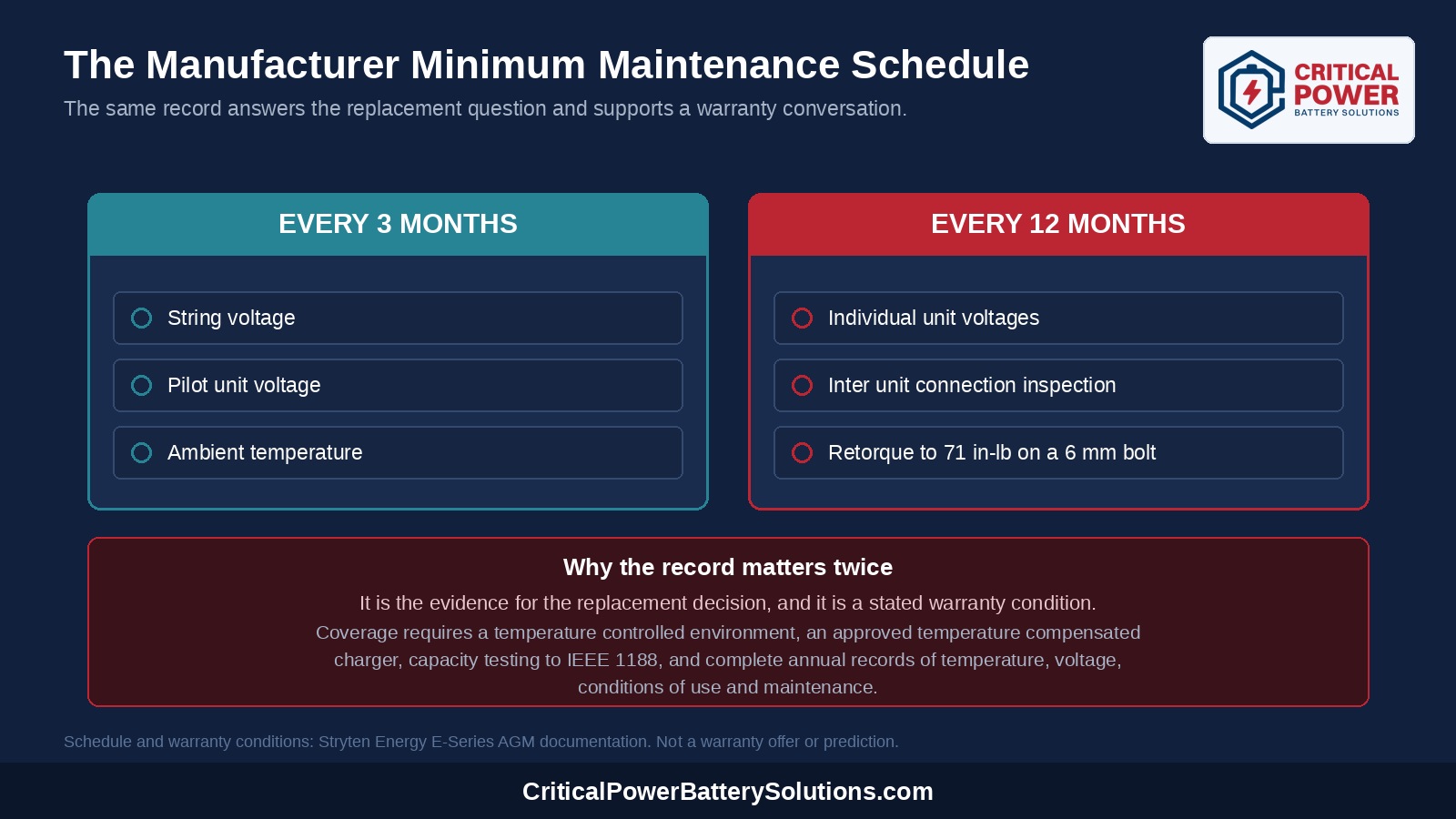

5. Pull the maintenance records. The manufacturer minimum schedule is string voltage, pilot unit voltage and ambient temperature every 3 months, and individual unit voltages plus inter unit connection inspection and retorque every 12 months. Gaps in that record are themselves a finding.
6. Compare ohmic readings to the string baseline rather than to a published reference table. The comparison that matters is a block against its own history.
7. Check capacity against the 80 percent line if a discharge test result exists, or plan one if the other signals point that way.
8. Decide. If projected life has been reached, or capacity is at or below 80 percent, or the ohmic trend has moved more than 50 percent from baseline, plan the replacement.

Replace the string as a set. Mixing new blocks into an aged string pulls the new blocks down to the condition of the old ones, because blocks in series share the same charge current and the string performs to its weakest member. Whatever is done, connections are retorqued at least once a year to the value on the battery label, which is 71 in-lb on a 6 mm bolt for the current blocks.

Why the records matter beyond the decision

The manufacturer warranty is conditional, and the conditions are the same records that answer the replacement question. It requires a temperature controlled environment, an approved full float voltage regulated charger with temperature compensated charge voltage, capacity testing carried out to IEEE 1188, and complete annual records of temperature, voltage, conditions of use and maintenance.

That is stated here as a matter of fact rather than as a promise. No warranty outcome can be predicted from a document, and CPBS does not offer one. What the list does explain is why step five of the procedure above is not administrative housekeeping. The record of temperature and voltage is simultaneously the evidence for the replacement decision and the evidence any warranty conversation would rest on. A site with four years of quarterly readings is in a position to argue. A site with none is not.

Where a warm room comes from

Rooms rarely run warm by design, and the cause is usually one of a short list. Finding it matters, because the replacement string will live in the same room the last one did.

• Cooling sized for the room as it was originally loaded, with equipment added since.
• A cabinet positioned against a warm wall, or in the discharge path of something that rejects heat.
• Airflow blocked at the cabinet, so the room average looks acceptable while the string does not.
• A season the site tolerates rather than conditions, which pulls the annual average up even when most of the year is comfortable.
• Unconditioned or remote enclosures where ambient temperature simply follows the weather.

Sustained high temperature is also the precondition for the failure mode nobody wants, and the mechanism and the conditions that lead to it are covered separately in the guide to preventing thermal runaway in VRLA strings. Where the concern is a telecom site specifically, timing for that application is covered in the guide to replacement intervals for telecom backup batteries.

If the answer is replace

The legacy blocks in the field are the S12V300F, S12V370F, S12V370NGF and S12V550NGF, and each one has a comparable current replacement. That mapping is documented, and it lives in the Sprinter cross reference and replacement guide rather than here.

A comparable current block differs in case dimensions, terminal design and weight from the legacy block it succeeds, so fit is confirmed on the actual installation before ordering. Where the string sits in an extended run time battery cabinet, the fitment checks that confirm the new blocks will land on the existing shelves and connector bars are covered in the guide to replacing 12V block strings in an extended run time battery cabinet.

Two other questions come up at the same moment. Whether the string was correctly sized in the first place is answered by the VRLA battery sizing guide. How long a given string will actually hold a given load is the arithmetic set out in the guide to calculating battery runtime. Both are worth revisiting at replacement, because the load the UPS carries today is rarely the load it carried when the string went in.

What to have ready before you call

Every item below shortens the quote, and the first two shorten it the most. A photograph of the label answers more questions than a description of it.

• Model number and quantity, read from the label on an existing block.
• Install date or manufacture date.
• Number of blocks in series and number of parallel strings.
• Ambient temperature of the room, and a note on how it varies through the year.
• Charger float voltage measured at the battery terminals.
• Most recent ohmic readings and the baseline they are compared against, if either exists.
• Required backup duration and the system minimum voltage.
• A photograph of the label and a photograph of one full shelf.

How CPBS handles a replacement decision

CPBS supplies the blocks, reads the evidence with you, and documents what was quoted and why. Tom Kierna reviews the model number, the conditions and the photographs personally before anything is quoted.

CPBS is consulting based: it supplies and sizes batteries and does not perform on site installation, commissioning, testing, or maintenance. Supplying or specifying UPS systems, cabinets, racks, or breakers is out of scope for CPBS. The testing and the installation stay with your own technicians or your service contractor. What CPBS owns is the battery decision and the paperwork that supports it.

Send the model number, the install date and the photographs to Tom Kierna at 630-984-9718 or sales@criticalpowerbatterysolutions.com. Most requests are identified the same day. Current line blocks carry an 8 to 10 week domestic lead time, which is worth knowing before the string reaches the point where the decision is being made under pressure rather than on a schedule.

Frequently asked questions

When should I replace my UPS batteries?

Replace the string when it reaches the projected life for the conditions it actually operated in, or when capacity falls to 80 percent of rating, whichever comes first. Projected life is the ten year design life reduced by the published penalty for the annual average battery temperature and the float voltage the string was held at. A string at 35C, or floating between 2.31 and 2.35 volts per cell, carries a 50 percent reduction and reaches end of useful life at about five years.

How long do 12V UPS batteries actually last?

Four to five years is typical in real installations, against a ten year design life at 25C (77F). The gap is not a defect and it is not a rule of thumb. It is what the manufacturer tables predict for a room running warmer than 25C, a charger floating above the recommended window, or both at once. A string genuinely held at 25C and floated between 2.25 and 2.30 volts per cell can approach the full design life.

Why do UPS batteries fail at four or five years if the design life is ten years?

Because ten years is a rating at 25C (77F) and inside the recommended float window, not a prediction for any particular room. The manufacturer publishes a 50 percent reduction in battery life at an annual average of 35C (95F), and the same 50 percent reduction for a float voltage between 2.31 and 2.35 volts per cell. Either condition alone turns ten years into five. Nothing has failed early. The block delivered what was published for those conditions.

How does temperature affect UPS battery life?

The published reductions in battery life are 0 percent at 25C (77F), 30 percent at 30C (86F), 50 percent at 35C (95F), 66 percent at 40C (104F), 75 percent at 45C (113F) and 83 percent at 50C (122F). Applied to a ten year design life those give projected lives of 10, 7, 5, 3.4, 2.5 and 1.7 years. The figure to use is the annual average battery temperature, not the building set point and not the reading on the day of the visit.

How does float voltage affect UPS battery life?

Between 2.25 and 2.30 volts per cell there is no published reduction, between 2.31 and 2.35 volts per cell the reduction is 50 percent, and between 2.36 and 2.40 volts per cell it is 75 percent. Values are temperature corrected volts per cell at 25C (77F). A string floating at 2.33 volts per cell has a projected life of five years from a ten year design life, which is the same penalty as running the room at 35C.

What float voltage should a 12V UPS block run at?

At 25C (77F) the AGM325 and AGM370 run between 2.25 and 2.30 volts per cell, and the AGM539 runs between 2.25 and 2.35 volts per cell. The minimum temperature corrected float across the line is 2.21 volts per cell and the maximum is 2.40 volts per cell. For temperatures other than 25C the recommended charge voltage per cell is corrected downward as temperature rises, using the coefficient set out above. Measure at the battery terminals rather than trusting the charger display.

What is the 80 percent capacity rule for UPS batteries?

A stationary VRLA battery is considered to have reached end of useful life when a capacity test shows it delivering 80 percent or less of its rated capacity. IEEE 1188 is the recommended practice for maintenance, testing and replacement of these batteries, and the manufacturer warranty is written against at least 80 percent of rated capacity. Below that line the string is replaced rather than retested, because degradation accelerates from there.

What does an internal resistance reading tell me about a UPS battery?

It tells you how a block compares to its own baseline, and nothing reliable about remaining capacity. Take the baseline six months after installation, use the same device every time, and trend each block against its own history. A change of 25 percent or less is normal variability, 25 to 50 percent calls for scrutiny, and more than 50 percent usually warrants a discharge test. Stand alone ohmic data is not sufficient to justify a warranty claim.

Can I replace only the bad blocks in a UPS string?

Replace the whole string. Blocks in a series string share the same charge current, and a new block placed alongside blocks that have aged for years will not match them on internal resistance or capacity. The string performs to its weakest member, so the new blocks never deliver their rating and are worked against the older ones instead. Mixing generations compounds it, because case size, terminal type and rated capacity all differ.

Is my S12V370NGF or S12V550NGF still supported?

Both are legacy blocks still widely in service, and both have a comparable current replacement available. The same is true of the S12V300F and the S12V370F. The current line is the S12V325FL, S12V370FL and S12V539FL, now sold under the Stryten Energy E-Series AGM label. A comparable current block differs in case dimensions, terminal design and weight from the legacy block it succeeds, so fit is confirmed on the actual installation before ordering.

What maintenance records should I be keeping on a UPS battery string?

Every 3 months record string voltage, pilot unit voltage and ambient temperature. Every 12 months record individual unit voltages and inspect and retorque the inter unit connections. That is the manufacturer minimum. Those records are what let you apply the temperature and float voltage tables to your own string rather than guessing, and complete annual records of temperature, voltage, conditions of use and maintenance are also a stated warranty condition.

How do I get a quote for replacement 12V UPS blocks?

Send the model number and quantity from the label, the install date, the string configuration, the room ambient temperature and the measured float voltage to Tom Kierna at 630-984-9718 or sales@criticalpowerbatterysolutions.com. A photograph of the label and a photograph of one full shelf answer most of the remaining questions. Most requests are identified the same day, and current line blocks carry an 8 to 10 week domestic lead time.

About the author: Tom Kierna is a Battery Systems Specialist at Critical Power Battery Solutions with more than 40 years in industrial battery systems, including 15 years across GNB and Stryten. He specializes in Sprinter and E-Series AGM block battery selection, replacement timing, and UPS application sizing. Last updated August 6, 2026.
